P / WL W Profile Impregnated Diamond Core Bit , High Efficieney Core Hole Drill Bits

Diamond Core Bit
P/WL,W-Profile(122.05mm/84.96mm) , The DCDMA standard impregnated diamond bits are the most commonly useful bits in the mineral exploration.
W - Profile

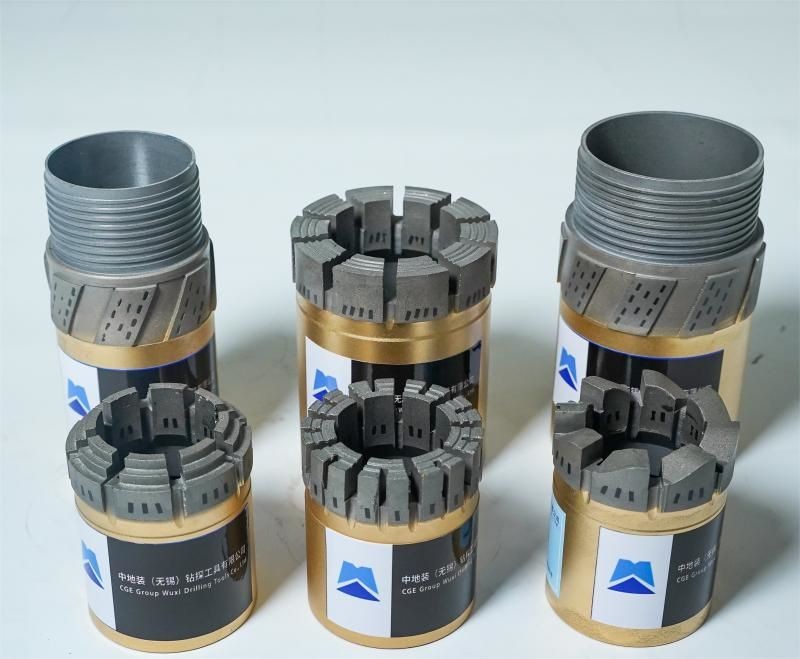

1. Impregnated diamond core bit
It’s most popular and commonly in the mineral’s exploration field and geology’s exploration field. Nowdays Our company produce three types(Master Series, Navigator Series, Junior Series) is recognized and recommended by more and more customers.
We preciously selected grades of top grade synthetic diamond are distributed in the depth of impregnated bit’s matrix series.The matrix layer of the crown contains a uniform distribution of these crystal that are embedded in a powdered metal bond, for improving lifespan and rate of penetration. The best record of our bit in south africa, single bit’s life span reach amazing 614.40m

• In order to help the customer to select suitable bit and reduce customer’s workload, please follow below three steps to choice your bit.

{1}Assure diameter of Impregnated bit

{2}(1)Appropriate hardness of matrix(For some special or complicated ground,we will need to customize the diamond bits according to the actual drilling conditions.)



(2)Appropriate profile/water way and height of the crown(Height of the crown:9mm-20mm,standard:14mm,Customized)




W-Profile(Standard profile)
·General purpose design
·Suitable for mixed formations contain broken and competent zones
·Suitable for a board range of formations
·Height of crown:14mm,Customized








Face discharge Profile
·Design to minimize washing of core sample
·Suitable for broken/granular formations
·Height of crown:14mm,Customized


Turbo Profile
·High performance ”free cutting” bit
·High productivity
·Suitable for hard/competent formations
·Suitable for non-abrasive formations
Height of crown:14mm,Customized


Sand profile
Suitable for competent to extremly broken or clay,
clay/sand mixed formations
·Double tube applications
·To improve core recovery in soft/broken or loose zones
·Height of crown:14mm,Customized




Taper Profile
·Profile used in hole wedging(directional drilling)
Operations to ream wedged hole after pilot bit
· Height of crown:14mm,Customized


{3}Select suitable series from our three types
(1)Master Series(Full range hardness of stratum)
Manufactured one by one with care and precision,Master™ core bit are designed to our highest quality standards. They offer their best performance in very hard to extremely hard types, such as those comprised of basalt and felsic or volcanic rock and so on.


(2)Navigator Series(Soft -very hard hardness of stratum)
Navigator™is our highest cost performace and most popular series. This series provides the versatility you need for optimum drilling perforance in varying conditions, best performance in soft to very hard stratums

(3)Junior Series(Soft-medium hardness of stratum)
Attractive price with high cost performance, Junior™series provide good performance in soft to medium stratums

CGE Group Wuxi Drilling tools Co.,Ltd. (formerly named Wuxi drilling tool factory Co., Ltd) was founded in 1958, which is a state-owned leading enterprise . We’re the strategic partner of Atlas Copco ( Epiroc) since 2012.

Our company covers 120 mu and has a total assets around 20000 million Rmb. We have around 200 employees, including 10 technicians.

The main products we manufactured are listed as bellow:

1.China national standard coring drill system products

2.DCDMA standard products: A, B, N, H, Q series ,T2, T6 series impregnated diamond bit, PDC bit, surface set bit, drill rod, core barrel assembly, overshot, water swivel, hoist, circle wrench...

3.API standard drill rod for oil & water well drilling rod

4.Equipment for water conservancy, geology, unconventional oil & gas, and environment treatment, as well as doing relevant trades & services.

Warehouse

Quality Control Department

We have been strictly controlled the quality of our raw materials, and all of our steel metals

are from famous steel mills (factories).

Department Of Technology

Can innovate products following market trend based on customer’s need and valuable

feedback.

● Passed the certification of ISO 9001:2000 quality system.

● Passed OHSAS18000 Occupational Health and Safety Management System

   Certification .

● Have more than 70 items independent intellectual property patents.

Products are used in many national major projects
