A leading manufacturer in China for suppling drilling tools for mineral exploration and geotechnical drilling indutries, also the Strategic Partner of Atlas Copco/ Epiroc since the year of 2012 (XZ is
7 Years
| Ask Lasest Price | |
| Brand Name : | cge |
| Model Number : | P B N H SIZE |
| Certification : | ISO DCDMA CMS GB |
| Price : | $800-1200 |
| Payment Terms : | T/T, L/C, Western Union, D/A, D/P, MoneyGram |
| Supply Ability : | 400-500 pieces per month |
| Delivery Time : | 8-12 days |
PWL PWL-3 furface double tube core barrel for diamond coring mineral exploration geotechnical environmental drilling
PQ BQ NQ HQ BQU NQU HQU NQ3 HQ3 PQ3
Standard Wireline Double tube Core Barrels are ideal for use in most of the drilling conditions and are available for application in standard hole sizes (BWL, NWL, HWL and PWL).
Wireline Triple tube Core Barrels enable integral core recovery when drilling coal, clay bearing or highly fractured formations. The split tube retains the core sample in its received state for easier loading into sample trays or for storage and subsequent presentation to the geologist. The Triple tube Core Barrels is available in N, H and P sizes.
| PWL Complete Core Barrel Assembly | ||
| Item | Part # | Description |
| 1-10 | 3543865 | Core Barrel Assembly,PWL 1.5M/5.0FT |
| 1-10 | 3543866 | Core Barrel Assembly,PWL 3.0M/10FT |
| PWL Complete Inner Tube Assembly | |||
| Item | Part # | Description | |
| 1-10 | 3543863 | Inner Tube Assembly,PWL 1.5M/5.0FT | |
| 1-10 | 3543864 | Inner Tube Assembly,PWL 3.0M/10FT | |

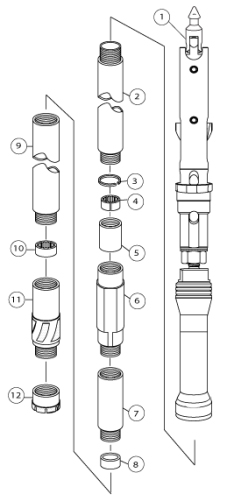

| PWL Core Barrel Kit | |||
| Item | Part # | Description | |
| 1 | 3546500 | Head Assembly, PWL | |
| 2 | 26159 | Inner-tube, PWL 1.5 M / 5.0 FT | |
| 26159CP | Inner-tube, PWL 1.5 M / 5.0 FT, Chrome Plated | ||
| 26534 | Inner-tube, PWL 3 M / 10.0 FT | ||
| 26534CP | Inner-tube, PWL 3 M / 10 FT, Chrome Plated | ||
| 3 | 26161 | Stop Ring, PWL | |
| 26162 | Core Lifter, PWL Fluted | ||
| 3548626 | Core Lifter, PWL, Fluted, Diamond Coated | ||
| 5 | 52172 | Core Lifter Case, PWL | |
| 5007949 | PHD Stabilized Locking Coupling with Tang | ||
| 5007948 | PHD Stabilized Locking Coupling | ||
| 7 | 25241 | Adapter Coupling, PWL | |
| 8 | 3543814 | Landing Ring, PWL | |
| 9 | 3543802 | Outer-tube, PHD/PWL 1.5 M / 5.0 FT | |
| 35438029CP | Outer-tube, PHD/PWL 1.5 M / 5.0 FT, Chrome Plated | ||
| 3543801 | Outer-tube, PHD/PWL 3.0 M / 10.0 FT | ||
| 3543801CP | Outer-tube, PHD/PWL 3.0 M / 10.0 FT, Chrome Plated | ||
| 10 | 44923 | Stabilizer, PWL Inner-tube | |
| 11 | ------ | Reaming Shell | |
| 12 | ------ | Core Bit | |
NOTE:
*PWL-3 core barrel is available
*MKII Spearhead is also available
**Reaming shell and core bit not included in the core barrel assembly.
|
|
