HWL HWL-U HWL-3 wireline drilling core barrel single double and triple tube core barrels
HQ BQ NQ PQ BQU NQU HQU NQ3 HQ3 PQ3
Using a wireline system, core is recovered quickly by retrieving the inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has big cost advantages when drilling deep holes for mineral exploration.
| HWL Complete Core Barrel Assembly | ||
| Item | Part # | Description |
| 1-10 | 3542946 | Core Barrel Assembly,HWL 1.5M/5.0FT |
| 1-10 | 3542947 | Core Barrel Assembly,HWL 3.0M/10FT |
| HWL Complete Inner Tube Assembly | |||
| Item | Part # | Description | |
| 1-10 | 3542942 | Inner Tube Assembly,HWL 1.5M/5.0FT | |
| 1-10 | 3542943 | Inner Tube Assembly,HWL 3.0M/10FT | |

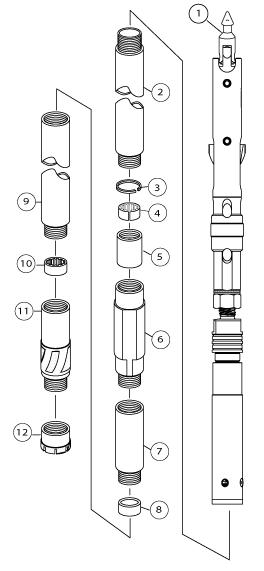

| HWL Core Barrel Kit | |||
| Item | Part # | Description | |
| 1 | 3542941 | Head Assembly, HWL | |
| 2 | 25258 | Inner-tube, HWL 1.5 M / 5.0 FT | |
| 25258CP | Inner-tube, HWL 1.5 M / 5.0 FT, Chrome Plated | ||
| 25236 | Inner-tube, HWL 3 M / 10.0 FT | ||
| 25236CP | Inner-tube, HWL 3 M / 10 FT, Chrome Plated | ||
| 3 | 25238 | Stop Ring, HWL | |
| 4 | 30489 | Core Lifter, HWL Slotted | |
| 3546912 | Core Lifter, HWL Fluted | ||
| 25239 | Core Lifter, HWL, Slotted, Diamond Coated | ||
| 3548555 | Core Lifter, HWL, Fluted, Diamond Coated | ||
| 5 | 25237 | Core Lifter Case, HWL | |
| 6 | 3545409 | Locking Coupling, HWL Full-hole with Tang | |
| 3545410 | Locking Coupling, HWL Full-hole | ||
| 5007791 | HWL Stabilized Locking Coupling with Tang | ||
| 5007789 | HWL Stabilized Locking Coupling | ||
| 7 | 25241 | Adapter Coupling, HWL | |
| 8 | 25242 | Landing Ring, HWL | |
| 9 | 25259 | Outer-tube, HWL 1.5 M / 5.0 FT | |
| 25259CP | Outer-tube, HWL 1.5 M / 5.0 FT, Chrome Plated | ||
| 3545392 | Outer-tube, HWL 1.5 M / 5.0 FT, Full-hole | ||
| 25243 | Outer-tube, HWL 3.0 M / 10.0 FT | ||
| 25243CP | Outer-tube, HWL 3.0 M / 10.0 FT, Chrome Plated | ||
| 3545393 | Outer-tube, HWL 3.0 M / 10.0 FT, Full-hole | ||
| 10 | 44408 | Stabilizer, HWL Inner-tube | |
| 11 | ------ | Reaming Shell | |
| 12 | ------ | Core Bit | |
NOTE:
*HWL-U HWL-3 core barrels are available
*MKII Spearhead is also available.
**Reaming shell and core bit not included in the core barrel
assembly.
|
|
