    HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration

    Ask Lasest Price
    Brand Name : cge
    Model Number : HQ ( OD: 95.6mm ID: 63.5mm)
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T,
    Supply Ability : 999+
    Delivery Time : According to order
    • Product Details
    • Company Profile

    HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration

    HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration

    HQ Standard W profile Impregnated Drill Bits C14 for mineral explorationHQ Standard W profile Impregnated Drill Bits C14 for mineral explorationHQ Standard W profile Impregnated Drill Bits C14 for mineral exploration


    Description of Diamond Core Drill Bit


    CHINA GEOLOGICAL EQUIPMENT GROUP possesses professional ability of WL/ Q series drill bits and reaming shells.

    Our drilling bits have first-class quality , excellent performance. Bits and reaming shells are designed on basis of ground condition.

    In respect of drilling in speed and useful life,our products are the most competitive products in China based on top quality.

    Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix.
    The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds
    are exposed to continue cutting through the rock. In most geological formations, IMP bits are more economical to use than other bits.

    Shapes of lips: flat-bottom,circular,serration,pointed teeth,angle teeth,ladder,and ladder with end spray .


    Standard : To cooperate with Q series drilling tools,bits are designed on basis of different stratum condition.

    Our company also design and produce non-standard drilling bits according to customer's special requirements.


    Recommendation : When hardness of stratum is high,low grade drilling bits are recommended to ensure matching of stratum.


    Specifications


    SizeBit O.D. Hole DiameterBit I.D. Core DiameterReaming Shell O.D.
    INCHESMMINCHESMMINCHESMM
    AQ1.870/1.88047.50/47.751.057/1.06726.85/27.101.885/1.89547.88/48.13
    LTK481.870/1.88047.50/47.751.384/1.39435.15/35.411.885/1.89547.88/48.13
    BQ2.340/2.35059.44/59.691.428/1.43836.27/36.532.355/2.36559.82/60.07
    BQ32.340/2.35059.44//59.691.315/1.32533.40/33.652.355/2.36559.82/60.07
    NQ2.960/2.97075.18/75.441.870/1.88047.50/47.752.975/2.98575.57/75.82
    NQ22.960/2.97075.18/75.441.990/2.00050.65/50.802.975/2.98575.57/75.82
    NQ3/NQTT2.960/2.97075.18/75.441.770/1.78044.96/45.212.975/2.98575.57/75.82
    NMLC2.960/2.97075.00/75.442.042/2.05251.87/52.122.975/2.98575.50/75.82
    HQ3.755/3.77095.38/96.002.495/2.50563.38/63.633.775/3.79095.89/96.27
    HQ3/HQTT3.755/3.77095.38/95.572.401/2.41160.99/61.243.775/3.79095.89/96.27
    PQ4.795/4.815121.80/122.303.340/3.35084.84/85.094.820/4.835122.43/122.81
    PQ34.795/4.815121.80/122.303.265/3.27582.93/83.194.820/4.835122.43/122.81
    T2-762.987/2.99775.87/76.122.424/2.43461.56/61.822.999/3.00976.17/76.42
    T2-863.381/3.39185.87/86.122.818/2.82871.56/71.823.393/3.40386.17/86.42
    T2-1013.970/3.982100.84/101.143.290/3.30083.56/84.003.984/3.994101.19/101.44
    T6-1013.970/3.982100.84/101.143.105/3.11578.88/79.133.984/3.996101.21/101.51
    T6-1164.560/4.575115.80/116.183.657/3.66792.88/93.134.575/4.590116.21/116.59
    T6-1315.150/5.165130.80/131.184.247/4.257107.88/108.135.165/5.180131.21/131.59
    T6-1465.740/5.755145.80/146.184.837/4.847122.88/123.135.757/5.772146.23/146.61
    HMLC3.85898.002.50063.503.87898.50








    Advantages


    • High quality drilling equipment;
    • Full technical support and service;
    • Spare parts, tools and consumable materials
    • Training and consulting services
    • International sales and dealership agencies;

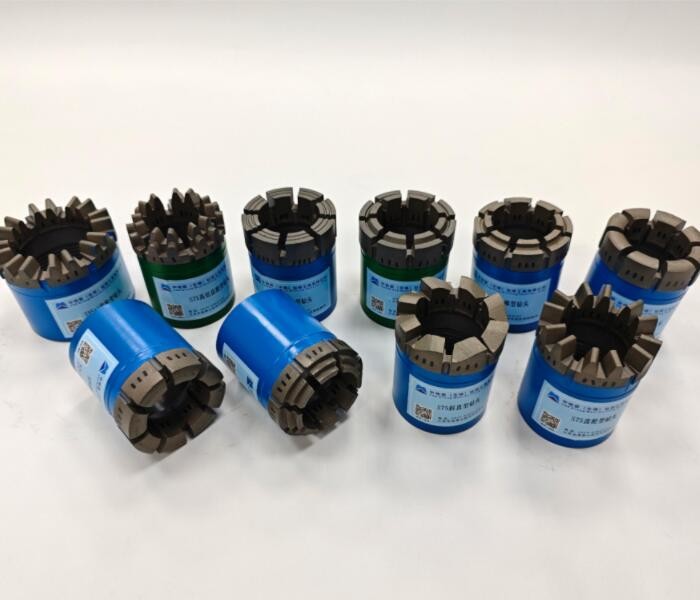

    diamond core bit picture

    HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration
