A leading manufacturer in China for suppling drilling tools for mineral exploration and geotechnical drilling indutries, also the Strategic Partner of Atlas Copco/ Epiroc since the year of 2012 (XZ is
7 Years
| Ask Lasest Price | |
| Brand Name : | cge |
| Model Number : | NW BW HW PW SIZE |
| Certification : | ISO DCDMA CMS GB |
| Price : | $85-105 |
| Payment Terms : | T/T, L/C, Western Union, D/A, D/P, MoneyGram |
| Supply Ability : | 1000-1200 pieces per month |
| Delivery Time : | 7-10 days |

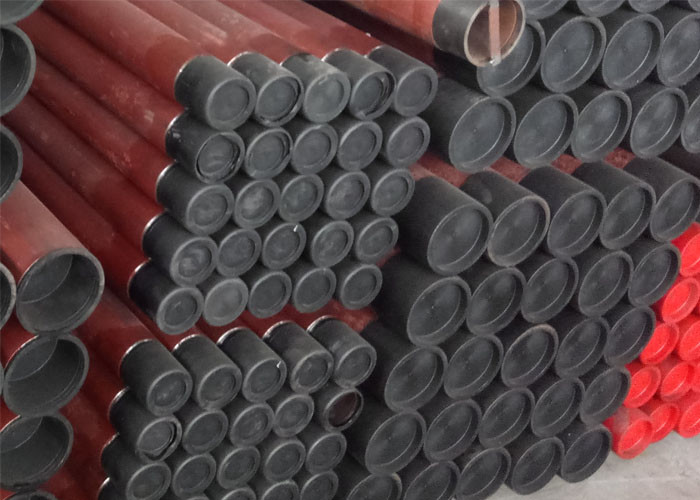

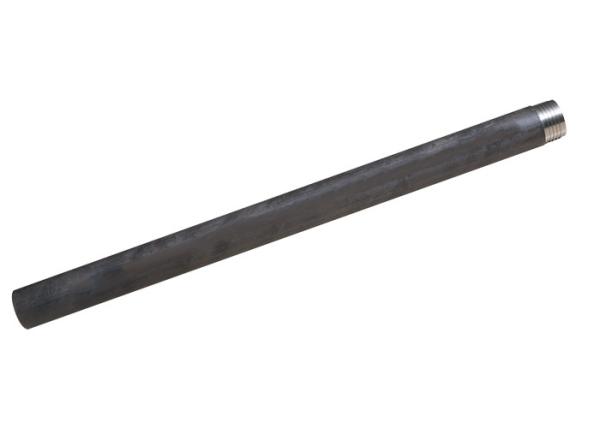

NW Flush Jointed Casing Tubing , Seamless Casing Pipe For Water Well Drilling
NW flush jionted casing tubing
Application:
Mainly used for gas drainage hole, also widely used for mining, geology exploration, hydroeceltric dam.
Casing pipe is used for protecting subsurface formations. It also
protects the bore hole form collapsing.
As an important part of the bore hole, casing has several important
functions:
Prevent bore hole collapse, the isolation of different formations
to prevent liquid convection between the formations and thus play a
role in controlling the drilling fluid and pressre while drilling.
Flush-Jointed W Series Casing
| Size | OD | ID | ||
| inch | mm | inch | mm | |
| BW | 2.874 | 73.0 | 2.374 | 60.3 |
| NW | 3.500 | 88.9 | 3.000 | 76.2 |
| HW | 4.500 | 114.3 | 4.000 | 101.5 |
| PW | 5.500 | 139.7 | 5.000 | 127.0 |
|
|
