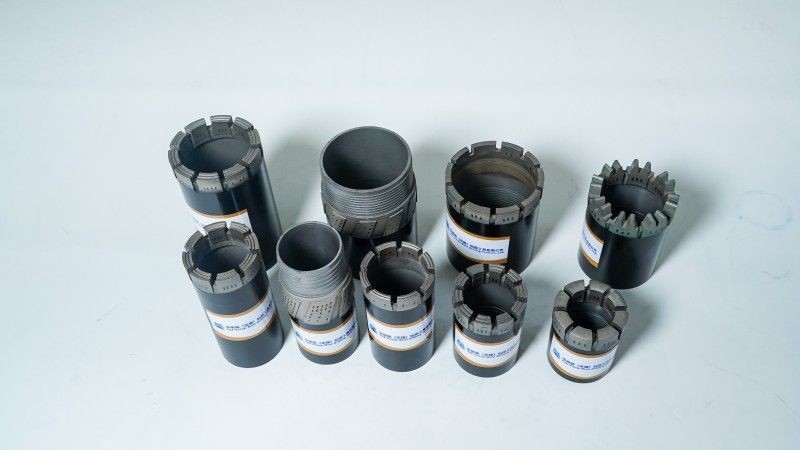

NWL HWL PWL Impregnated Imp Diamond Core Bit For Mining Exploration
Description
Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
The application of impregnated diamond bit range from medium to ultra-hard formations. The bit’s crown is made up of a metal powder and diamond matrix that wears away during the drilling process and exposes new layers of diamonds, renewing the cutting points. The combination of diamond and proprietary matrix result in the optimal performance.
Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.
Specifications
| ITEM | DIAMOND BIT | REAMING SHELL | |||||
| "Q" Series Wireline | Size | Bit-set OD | Bit-set ID | ||||
| mm | inch | mm | inch | mm | inch | ||
| AQ | 47.60 | 1.88 | 26.97 | 1.06 | 48.00 | 1.89 | |
| BQ | 59.50 | 2.35 | 36.40 | 1.43 | 59.90 | 2.36 | |
| NQ | 75.30 | 2.97 | 47.60 | 1.88 | 75.70 | 2.98 | |
| HQ | 95.58 | 3.77 | 63.50 | 2.50 | 96.00 | 3.78 | |
| PQ | 122.00 | 4.80 | 84.96 | 3.35 | 122.60 | 4.83 | |
| Swedish Metric T2 Series | 36 | 36.0 | 1.417 | 22.0 | 0.866 | 36.3 | 1.429 |
| 46 | 46.0 | 1.811 | 32.0 | 1.260 | 46.3 | 1.823 | |
| 56 | 56.0 | 2.205 | 42.0 | 1.654 | 56.3 | 2.217 | |
| 66 | 66.0 | 2.598 | 52.0 | 2.047 | 66.3 | 2.610 | |
| 76 | 76.0 | 2.992 | 62.0 | 2.441 | 76.3 | 3.004 | |
| 86 | 86.0 | 3.386 | 72.0 | 2.835 | 86.3 | 3.398 | |
| 101 | 101.0 | 3.976 | 84.0 | 3.307 | 101.3 | 3.988 | |
| Swedish T Series | TAW | 47.6 | 1.875 | 23.2 | 1.31 | 48.0 | 1.89 |
| TBW | 59.5 | 2.345 | 44.9 | 1.77 | 59.9 | 2.36 | |
| TNW | 75.3 | 2.965 | 60.5 | 2.38 | 75.7 | 2.98 | |
{2}(1)Appropriate hardness of matrix(For some special or
complicated ground,we will need to customize the diamond bits
according to the actual drilling conditions.)
|
|
